Печь для лабораторий L(T) 3/11

муфельнаяиз нержавеющей сталивентилируемая

Краткое описание
Муфельные печи поставляются с откидной либо подъемной дверцей (по выбору) и без наценки.

Overview / Описание (англ.)
The muffle furnaces L 3/11 - LT 60/12 have been proven for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.

Standard Equipment / Стандартное оснащение

• Tmax 1100 °C or 1200 °C
• Heating from two sides by ceramic heating plates (heating from three sides for muffle furnaces L 24/11 - LT 60/12) for an optimal temperature uniformity
• Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C
• Thermocouple type N (1100 °C) or type S (1200 °C)
• Ceramic heating plates with integral heating element which is safeguarded and easy to replace

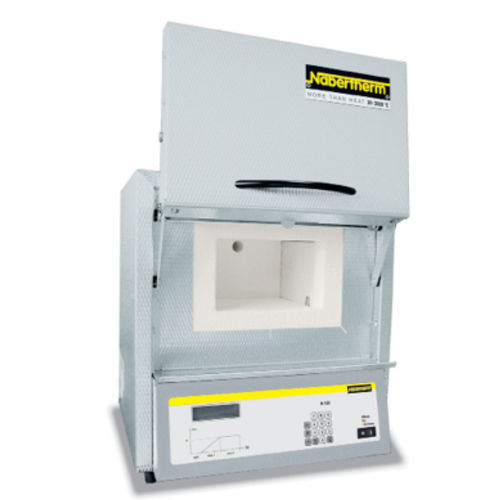

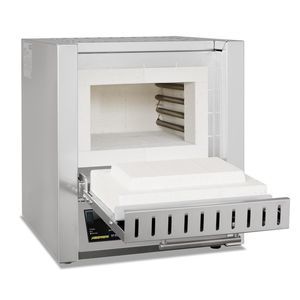

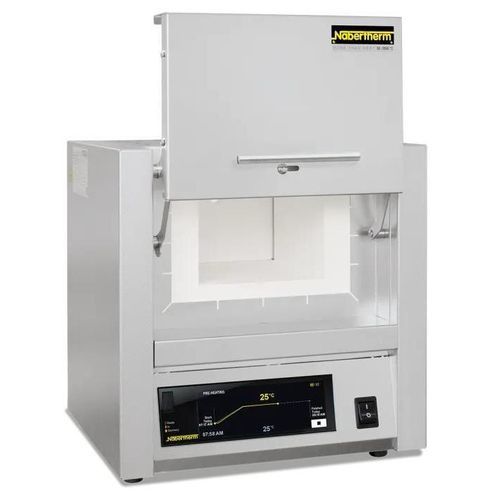

• Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator
• Dual shell ventilated housing made of textured stainless steel sheets for low surface temperature and high stability
• Exclusive use of insulation materials without categorization according to EC Regulation No. 1272/2008 (CLP) — no alumino silicate wool / RCF
• Adjustable air inlet integrated in door (see illustration)
• Exhaust air outlet in rear wall of furnace
• Controller with touch operation B510 (5 programs with each 4 segments) resp. controller R8 for L 1/12 (adjustable for one temperature)
• Solid state relays provide for low-noise operation
• Defined application within the constraints of the operating instructions
• NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive

Additional Equipment / Дополнительное оборудование

• Chimney, chimney with fan or catalytic converter (not for L 1 and L 15)
• Over-temperature limiter with adjustable cutout temperature as temperature limiter to protect the furnace and load
• Protective gas connection to purge with non-flammable process gases (not available in combination with chimney, chimney with fan or catalytic converter) — not gas tight
• Manual or automatic gas supply system
• Port for thermocouple in the rear wall or in the furnace door
• Process control and documentation via VCD software package for monitoring, documentation and control
• Charging rack with closed or perforated trays for loading the furnace in two levels incl. holder for inserting/removing the trays up to a max. temperature of 800 °C and a max. loading weight per layer of 2 kg for the L(T) 9/11 respectively 3 kg for the L(T) 15/11 respectively 3,5 kg for the L(T) 24/11 and L(T) 40/11

Specifications (table)
Model | Tmax (°C) | Inner dim. w / d / h (mm) | Volume (l) | Outer dim. W / D / H (mm) | Temp. uniformity +/-5K | Connected load (kW) | Electrical connection | Weight (kg) | Heating time (min)
L(T) 3/11 | 1100 | 160 / 140 / 100 | 3 | 385 / 330 / 405+155 | 110 | 50 | 50 | 1.3 | 1-phase | 21 / 41
L(T) 5/11 | 1100 | 205 / 170 / 130 | 5 | 385 / 390 / 460+205 | 170 | 80 | 80 | 2.6 | 1-phase | 27 / 47
L(T) 9/11 | 1100 | 235 / 240 / 170 | 9 | 415 / 455 / 515+240 | 180 | 150 / 120 | 120 | 3.3 | 1-phase | 35 / 63
L(T) 15/11 | 1100 | 230 / 340 / 170 | 15 | 415 / 555 / 515+240 | 180 | 250 | 120 | 3.5 | 1-phase | 43 / 74
L(T) 24/11 | 1100 | 280 / 340 / 250 | 24 | 490 / 555 / 580+320 | 230 | 250 | 200 | 4.9 | 3-phase | 52 / 69
L(T) 40/11 | 1100 | 320 / 490 / 250 | 40 | 530 / 705 / 580+320 | 270 | 400 | 200 | 6.5 | 3-phase | 70 / 80
LT 60/11 | 1100 | 380 / 490 / 330 | 60 | 610 / 705 / 660+385 | 290 | 360 | 240 | 9.8 | 3-phase | 83 / 150

Note lines from original table: Recommended working temperature for processes with longer dwell times is 1000 °C (L../11) resp. 1100 °C (L../12). External dimensions vary when furnace is equipped with additional equipment. Including opened lift door (LT models). Heating time = heating time of the empty and closed furnace up to Tmax −100 K (connected to 230 V 1/N/PE resp. 400 V 3/N/PE). Temperature uniformity of +/− 5 K with closed fresh-air inlet in empty work space according to DIN 17052-1 at working temperatures above 800 °C.

Характеристики / спецификации технические

• Максимальная температура: 1100 °C или 1200 °C (в зависимости от модели)
• Нагрев: керамические нагревательные пластины (с двух сторон, у некоторых моделей — с трёх сторон)
• Точность/однородность температуры: +/- 5 K (при закрытом притоке свежего воздуха, рабочие температуры выше 800 °C, DIN 17052-1)
• Тип термопары: N (для 1100 °C) или S (для 1200 °C)
• Опции дверей: откидная дверь (L) или подъемная дверь (LT) — горячая поверхность обращена в сторону, противоположную оператору (LT)
• Кожух: двойной вентиляторный кожух из текстурированной нержавеющей стали — низкая температура поверхности и высокая устойчивость
• Изоляция: материалы без классификации по регламенту EC 1272/2008 (CLP) — не используется RCF (refractory ceramic fiber)
• Контроллеры: B510 (сенсорное управление, 5 программ по 4 сегмента) или R8 для L 1/12
• Логирование процессов: NTLog Basic (USB)
• Возможны дополнительные опции: дымоход / дымоход с вентилятором / каталитический конвертер, газовые системы, порт для термопары, запор предельного термостата и т.д.
