Overview

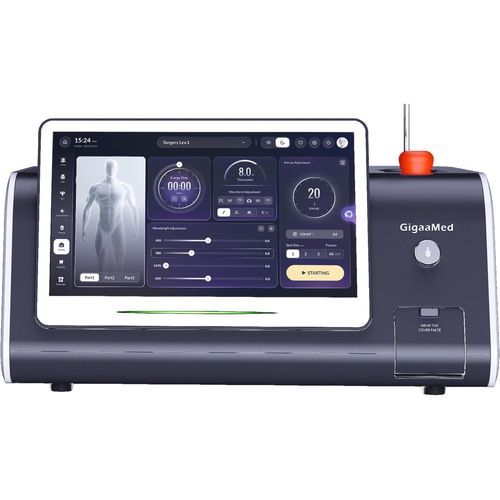

LASEVIA is a multi-wavelength diode laser platform by GIGAAMED that integrates up to four semiconductor sources in one console to cover aesthetic, vascular and therapeutic indications. Platform highlights include support for multiple wavelengths (configuration-dependent), peak outputs up to 30 W+, Class 4 safety hardware, and an 11.6-inch Android smart touchscreen for protocol recall and real-time readouts.

Wavelength architecture & configurations
Four/five wavelengths available (configuration dependent): 450 / 635 / 980 / 1470 / 1940 nm — each diode independently switchable.

Configuration A
1940 nm — 10 W
1470 nm — 15 W
980 nm — 20 W
635 nm — 500 mW
Fiber core: 200 µm · Typical applications: Endolifting · Lipolysis · Vascular

Configuration B
1470 nm — 15 W
980 nm — 30 W
450 nm — 8 W
635 nm — 2 W
Fiber cores: 200 / 400 µm · Typical applications: Therapy · Proctology · LVR

Emission & timing

• Emission modes: CW · single pulse · repeat pulse
• Pulse width: 25 µs – 10 s
• Repetition rate: 0.05 Hz – 50 kHz
• Delivery interface: SMA905 universal port (accepts contact fibers from 200 to 1000 µm and non-contact tips)

Clinical specialties (eight)

• Endolifting — Deep 1940 nm fractional fiber remodels superficial and deep layers for non-surgical lifting of face, neck and body.
• Lipolysis — Ring-light fiber emulsifies adipose via micro-cannulas for precise, mini-invasive body contouring (1470 / 980 nm).
• Spider vein & Vascular — Transdermal and endovenous coagulation of telangiectasia and varicose veins (980 / 1470 / 635 nm).
• Therapy · HILT Class IV — Deep-tissue photobiomodulation for pain, inflammation and tissue repair (multiple therapy wavelengths supported).
• LVR (Laser Vaginal Rejuvenation) — Non-ablative 635 nm intimate-health protocol for vaginal tone, lubrication and function improvement.
• Proctology — Fiber-delivered coagulation for haemorrhoids and fistulas; radial/tapered fibers and accessory kit for mini-invasive procedures.
• EVLT (Endovenous Laser Treatment) — Endovenous ablation using water-absorbed wavelengths (1470 / 1940 nm) for in-office vein sealing.
• ENT — 450 nm blue diode for minimally invasive soft-tissue ENT surgery with minimal thermal damage.

Device, interface & safety

• 11.6-inch Android smart touchscreen: touch presets, one-tap protocol recall, real-time energy readouts, glove-friendly interface.
• Portable console: approximately 15 kg with single-handle carry frame.
• Safety features: prominent emergency laser stop (mushroom switch) and mechanical safety shutter; classified as Class 4 laser system.
• Multi-mode emission and precise timing control to tailor delivery per indication.

Delivery systems, handpieces & accessories

• Handpiece sets: Basic Handpiece Set (endolifting · lipolysis), Advanced Liposuction Set, SUPERSCAN Focus Set (spider vein · fractional), LVR Handpiece Set, PM5 Therapy Set, Disposable LVR Set, Disposable Surgical Set.
• Fibers: High-Power Fiber (SMA905), Bare Fiber (direct contact), Polyimide-coated Fiber, Radial Fiber (360° emission), Hemorrhoid Fiber (typically 600 µm).
• Accessories: Laser safety goggles, foot switch, fiber cutter, fiber stripper, optic connector cleaner.

Notes on clinical platform
The LASEVIA platform is designed to replace multiple single-purpose devices by combining wavelengths and delivery sets in one console to cover aesthetic and surgical workflows.

Caractéristiques / spécifications techniques

• Laser type: Multi-wavelength semiconductor (diode) laser platform
• Wavelengths: 450 / 635 / 980 / 1470 / 1940 nm — configuration dependent
• Maximum output: Up to 30 W+
• Configuration A (example): 1940 nm 10 W · 1470 nm 15 W · 980 nm 20 W · 635 nm 500 mW · fiber 200 µm
• Configuration B (example): 1470 nm 15 W · 980 nm 30 W · 450 nm 8 W · 635 nm 2 W · fiber 200 / 400 µm
• Emission modes: CW · single pulse · repeat pulse
• Pulse width: 25 µs – 10 s
• Repetition rate: 0.05 Hz – 50 kHz
• Delivery system: SMA905 fiber interface · contact 200 / 400 / 600 / 1000 µm · non-contact tips
• Interface: 11.6″ Android smart touchscreen
• Safety: Emergency laser stop · mechanical safety shutter · Class 4
• Power supply: 100 – 240 V, 50 – 60 Hz, 350 VA
• Weight: ~15 kg (portable console)
• Certifications/standards referenced: CE · MDSAP · ISO 13485 · FDA-cleared therapeutic-laser technology
