Хирургический лазер Gbox

диодомнастольный

Overview

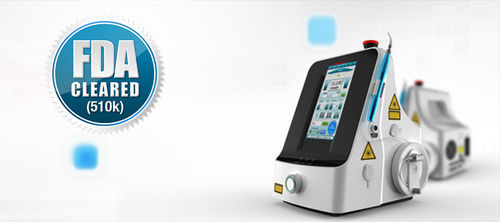

The new Gbox portable surgery diode laser system from GIGAA is a compact, mini surgery laser offering up to 30W peak output. Available wavelengths: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm and 1940nm. Operates in continuous and pulsed modes and can be used with contact or non-contact handpieces.

Applications

• Dentistry
• Endovenous laser treatment (EVLT)
• ENT
• PLDD
• Liposuction / Lipolysis
• DEEP Tissue Therapy
• Veterinary applications

Features

• User-friendly interface with advanced software and presetting protocols; protocols can be renamed, parameters changed and saved by the operator.
• Output power calibration at the end of fibers; built-in power meter can test the power in software.
• Adjustable aiming beam (pilot light), background light and sound.
• 20 KHz top-pulsation for quick and tissue-protecting performance.
• High quality and reliability with 8 inch touch screen display.
• Highly integrated and modular design for easier, lower-cost maintenance.
• Full accessories provided for clinical use.
• Reliable after-sale service and distributor training.

Compact and portable
30W peak output in a mini-size body case. Dimensions: 245(L) * 215(W) * 315(H) mm. Weight: approximately 5 kg. The system can be packed in a metal portable carry case with coded lock for easy transport.

Accessories and Handpieces

• Various accessories including flexible fiber, multiple handpieces of different shapes and lengths, micro-endoscope and more.
• Accessory for 2 kinds of fiber holders to keep fiber clean and convenient to use.
• Fiber lengths provided (example: 3 meters) suitable for many clinical procedures; fibers can be sterilized by user.
• Full standard accessories included so end user can work with the laser system directly.
• Specific therapy handpieces shown/mentioned: PM3 therapy handpiece (laser therapy for pain relief, accelerate healing, decrease inflammation), ENT handpieces (7 pieces for different ENT applications), Lipolysis handpiece (with 5 lengths of cannula; cannulas re-sterilizable up to ~40 times each).

Regulatory & Quality
Manufacturer states the laser systems have FDA approval and emphasizes research & development, production, service and training.

Caractéristiques / spécifications techniques

• Denomination: Gbox
• Wavelength options: 450nm, 532nm, 810nm, 980nm, 1064nm, 1470nm, 1940nm
• Peak output power: up to 30 W
• Operating modes: continuous and pulsed
• Pulse capability: up to 20 KHz top-pulsation
• Handpiece operation: contact and non-contact handpieces supported
• Built-in power meter and output power calibration at fiber end
• Aiming/pilot light: adjustable
• Display: 8 inch touch screen
• Dimensions: 245 x 215 x 315 mm (L x W x H)
• Weight: approx. 5 kg
• Portable: metal carry case with coded lock
• Fiber length (typical supplied): 3 m (sterilizable by user)
• Lipolysis cannula: 5 lengths, re-sterilizable up to ~40 cycles
• Accessories: flexible fibers, various handpieces, fiber holders, micro-endoscope, full clinical accessories
