Регистратор данных для исследований на животных DST milli-TD

для измерения температурыглубинадля океанологических исследований

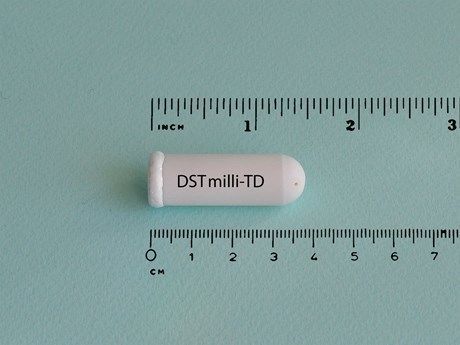

Product Details Overview: The DST milli-TD is a reliable temperature and depth archival tag, designed for long-term behavior and migration studies of fish and marine animals. It features a long battery life and large memory, capable of storing up to 1.4 million measurements at user-defined intervals, as fast as every second. Memory and battery life can last for 2.5 years if sampling at a 2-minute interval. The tag measures 39.4 mm x 13 mm and weighs 13 grams. It can record with multiple intervals, shifting between different intervals during the measuring period. Application: Designed as an economical fish archival tag for migration and dive behavioral studies of fish and marine animals over a long period. The tag can be implanted or attached externally and can also be used as a standalone temperature depth logger in various situations. Depth Sensors: Calibrated up to 800 meters. Customers can choose between depth calibration up to: 50 m, 100 m, 250 m, 500 m, or 800 m. Shallower ranges offer better resolution and accuracy. Attachment: Designed for implantation in the abdominal cavity or external attachment using a tag holder kit for easier and safer attachment. Customized Housing: Tags can have customized text for recapture purposes, important for commercially fished species. Spaghetti Tag: Optionally, a yellow plastic tube (spaghetti tag) can be attached for easier spotting of tagged fish. Using the Logger Simple setup and data retrieval, supported by SeaStar software and a Communication Box (purchased separately). Programming via Communication Box and SeaStar software, allowing user to set start time, date, and sampling interval. Supports single or multiple intervals (up to 7 different intervals). Software calculates memory fill and battery consumption based on interval settings. After recapture, data is uploaded to the software, displayed in graphic and tabular form, and can be exported. Data storage tag can be reused as long as the battery lasts. Key Features Long life and large memory Depth sensors for shallow to deeper water Fish implantation or external attachment Tag holder kit for easier and safer attachment Customized text on housing Accessories Communication Box: Interface between DST and PC for starting logger and retrieving data. SeaStar Software: Required for operation, displays data in graph and table, exportable to other programs. Tag Holder Kits: Plate holder kit and capsule holder kit for external attachment, with smooth edges and silicone pads for animal comfort. Floating Device: For internal or external tagging, available in two sizes, can be coated or painted for visibility. Technical Specifications Sensors: Temperature and pressure (depth) Size (Diameter x Length): 13mm x 40mm Maximum Diameter: 15mm at closure end Housing Material: Biocompatible alumina (Ceramic) Weight (in Air/in Water): 12g/7g Data Resolution: 12 bits Temperature Range: -1°C to +40°C (30°F to 104°F) Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: +/-0.1°C (0.18°F) Temperature Response Time: 12 sec (63% time constant) Standard Depth Ranges: 50m, 100m, 250m, 500m, 800m Depth Resolution: 0.03% of selected range Depth Accuracy: +/-1% of selected range Depth Response Time: Immediate Memory Type: FLASH Memory Capacity: 1,398,100 measurements (2MB FLASH, divided between sensors) Measurement Interval: User specified (seconds, minutes, hours) Minimum Measurement Interval: 0.1 second Burst Measuring Option: 10 Hz Multiple Intervals Option: Up to 7 different intervals Measurement Options: Temperature as primary, pressure/depth as primary Data Retention: 25 years Clock: Real time clock, accuracy +/-1 min/month Communications: Communication Box, wireless transmission, USB connection to PC Attachment Hole: 0.9 mm diameter Battery Life: 3.5 years (2.5 years at 2 min interval, 3.5 years at 5 min interval) Replaceable Battery: No Warranty: 12 months
