Регистратор данных для измерения температуры DST micro-TD

давлениеглубинадля исследований на животных

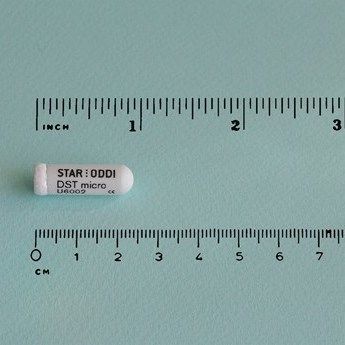

Small Temperature and Depth Fish Archival Tag The world‘s smallest temperature and depth logging archival fish tag. Ideal for very small fish or marine animals for long term behaviour and migration studies. Developed in co-operation with fish biologists.Small and reliable archival fish tagLong life and flexible interval setupDepth sensors for different rangesFish implantation or external attachmentUser defined text on the housing High performance in small sizeDimensions are only 25.4 mm x 8.3 mm and it weighs 3.3 g in air. Despite the small size of the logger, the DST micro-TD Data Storage Tag has high reliability and long lifetime. Therefore it is suitable for long term behaviour and migration studies of small fish, smolt and marine animals. ApplicationThe DST micro-TD is designed as an archival tag for migration, feeding and dive behavioral studies of small fish, seabirds and marine animals. The recorded time series data enable scientists to gain valuable information on migration routes and behavioural patterns over a long period of time. The tag can be implanted or attached externally. Long life and flexible interval setupDST micro-TD can store 87,168 measurements in total which means it can store data for 2.5 years when using a 30 minute interval, as an example. It is possible to set the logger to record with multiple intervals, shifting between different intervals during the measuring period. Also it is possible to choose different intervals for measuring depth and temperature. Depth sensors for different ranges, selected by the userYou can choose between depth calibration up to: 150 m, 300 m or 1000 m. The shallower the range the better the resolution and accuracy. Fish implantation or external attachmentThe logger is designed as an implantable tag and can be implanted in the abdominal cavity. It can also be attached externally on a fish or marine animal using a tag holder kit, ensuring easier and safer attachment. User defined text on housingFor tag and release of animals into the wild the tags can have a customized text on the housing, for recapture purposes. It is important to have the return information when the tags are used on commercially fished species, so that fishermen can return a tag with valuable data to the scientist. Normally there is a reward for a tag return. Spaghetti tag for spotting fishWhen the DST logger is implanted in fish it is possible to have a yellow plastic tube, a spaghetti tag, attached to the DST. The tube sticks to the exterior of fish, making it easier for fishermen to spot the tagged fish. Using the logger The logger and the accompanying items are designed for ease of use throughout the research process, from setting up the logger, attaching it, to retrieving and analysing the data. The logger is supported by the SeaStar software and a Communication Box which have to be purchased with the first order. Programming the LoggerTo set the logger for starting measurements it is placed into the Communication Box that connects with a USB cable to a PC computer. In the SeaStar software, the user sets the start time, start date and sampling interval before starting the tag for measuring. The tag synchronizes its internal clock with the date & time on the computer being used. Single or multiple intervalsThere are two modes for sampling, either at a single interval throughout the period or multiple intervals. When choosing multiple intervals programming it is possible to define up to seven different intervals and number of measurements for each interval. Shifting between wide and narrow intervals can help in extending the measuring period due to memory limitation and have more frequent measurements during certain time periods, for example spawning periods. Memory and Battery Life CalculationsThe software automatically calculates when memory fills based on certain interval settings, making it easier for the user to decide how to program the tag. Estimation on battery consumption during that time period is also calculated. Uploading the DataAfter fish recapture, the tag is inserted into the communication box and the recorded data is uploaded to the software. The results are displayed both in graphic and tabular form and the data can be exported to other programs. The time series data shows each measurement with its own time stamp. Long battery lifeAfter data retrieval the data storage tag can be re-used, as long as the batteries inside last. Battery life estimation is always reported upon connection with the tag. Due to the low energy consumption circuitry design the battery life can be several years, depending on usage and sampling interval used. Specifications Sensors: Temperature and pressure (depth) Size (Diameter x Length): 8.3mm x 25.4mm Housing Material: Biocompatible alumina (ceramic) Weight (in Air/in Water): 3.3g/1.9g Data Resolution: 12 bits Temperature Range: -2 to +40°C (28°F to 104°F)* Temperature Resolution: 0.032°C (0.058°F) Temperature Accuracy: +/- 0.2°C (+/- 0.36°F) Temperature Response Time: Time constant (63%) reached in 8 sec. Standard Depth Ranges: 1m-150m, 1m-300m, 5m-1000m Depth Resolution: 0.08% of selected range Depth Accuracy: +/- 1.5% of selected range Depth Response Time: Immediate Memory Type: Non-volatile EEPROM Memory Capacity: 87,906 measurements** Measurement Interval: User specified in second(s), minute(s), or hour(s) Minimum Measurement Interval: 1 second Multiple Intervals Option: Up to 7 different intervals Measurement Options (Primary/Secondary): Temperature as primary, pressure/depth as primary Data Retention: 25 years Clock: Real time clock. Accuracy +/-1 min/month. Communications: Communication Box, wireless transmission when DST sits in the box. Connection to PC: USB cable. Attachment Hole: 0.5 mm (diameter) Battery Life: 28 months*** Replaceable Battery: No *Other ranges available upon request.**Divided between the two parameters.***For sampling interval of 10 minutes, temperature and pressure recorded simultaneously.Warranty: 12 months.Specifications may change without notice.
