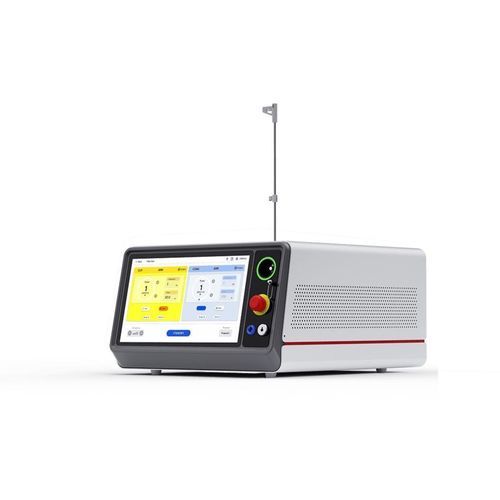

Ветеринарный лазер для ветеринарной хирургии Thulase Vet

диодныйгольмиемнастольный

Résumé
1940nm Thulium Fiber Laser System for Stone Powdering. Portable Veterinary Thulium Laser Lithotripsy System. Precision soft tissue surgery; Veterinary lithotripsy procedures; Advanced clinical surgical use.

Pourquoi Thulium Laser
Advanced Technology for Veterinary Surgery. Thulium laser technology provides excellent balance between cutting precision and coagulation, enabling advanced veterinary surgical applications with minimal thermal impact. This platform is designed for partners targeting high-end veterinary markets.

Avantages pour le distributeur

• Premium product positioning
• Strong differentiation from standard diode systems
• Higher margin potential
• Suitable for advanced and emerging markets

Fibres disponibles
Six different fiber sizes are available to accommodate various clinical applications.

• Fiber Size (Core Diameter): 200 μm
• 272 μm
• 365 μm
• 550 μm
• 800 μm
• 1000 μm

Tableau de synthèse (Paramètre / Thu-Vet-300 / Thu-Vet-400 / Thu-Vet-600)
Order Model / Thu-Vet-300 / Thu-Vet-400 / Thu-Vet-600
Wavelength / 1940nm±5nm / 1940nm±5nm / 1940nm±5nm
Maximum Power / 300W / 400W / 600W
Pilot Beam / 532nm / 635nm (532nm/635nm shown) / 532nm/635nm
Operation Mode / CW/Pulse / CW/Pulse / CW/Pulse
Energy/Pulse / Up to 3J / Up to 4J / Up to 4J
Repetition Rate / 1-3000hz / 1-4000hz / 1-6000hz
Dimensions / 409(W)*518(L)*254(H) mm / 409(W)*518(L)*254(H) mm / 450(W)*536(L)*271(H) mm
Weight / 30Kg / 33Kg / 42Kg

Applications cliniques

• Portable veterinary lithotripsy (stone powdering)
• Precision soft tissue surgery
• Advanced clinical surgical use in veterinary settings

Caractéristiques / spécifications techniques

• Nom du produit : ThulioDual Vet (Thu-Vet series)
• Type laser : Thulium fiber laser, 1940 nm ±5 nm
• Modes d'opération : Continuous Wave (CW) et Pulse
• Puissances maximales disponibles : 300 W, 400 W, 600 W (selon modèle)
• Energy per pulse : up to 3 J (300W model), up to 4 J (400W/600W models)
• Repetition rates : 1–3000 Hz (300W), 1–4000 Hz (400W), 1–6000 Hz (600W)
• Pilot beam : 532 nm / 635 nm
• Dimensions (selon modèle) : 409 × 518 × 254 mm (300/400), 450 × 536 × 271 mm (600)
• Poids (selon modèle) : 30 kg / 33 kg / 42 kg
• Fibres optiques : 200 μm, 272 μm, 365 μm, 550 μm, 800 μm, 1000 μm
