Overview
The Nordlys® platform is a multi-application skin treatment system combining Selective Waveband Technology (SWT) intense pulsed light (IPL), two non-ablative fractional lasers (1550 nm and 1940 nm), and an Nd:YAG 1064 nm laser. It is designed to treat pigmentation, vascularity, skin resurfacing, and hair removal. The Nordlys Mini is a stand-alone non-ablative fractional laser device that includes the 1550 nm and 1940 nm applicators for skin resurfacing and benign pigmented lesions.

Key Benefits

• Offers advanced technologies for a wide range of dermatologic and aesthetic treatments.
• Usable across Fitzpatrick Skin Types I–VI depending on applicator and settings.
• High ROI non-ablative fractional resurfacing with minimal downtime.
• Expands practice offerings (pigment, vascular, resurfacing, hair removal).
• Handpieces/applicators can be purchased over time to extend capabilities.

Technology

• SWT® IPL: Narrowband IPL using dual light filters and sub-millisecond pulses for vascular treatments, photorejuvenation and hair removal.
• 1550 nm: Non-ablative fractional laser for deeper skin resurfacing; includes SoftCool™ for patient comfort. Also available on Nordlys Mini.
• 1940 nm: Non-ablative fractional laser for epidermal/shallow resurfacing and treatment of benign pigmented lesions (reaches epidermis and superficial dermis ~ up to 200 μm). Also available on Nordlys Mini.
• Nd:YAG 1064 nm: Powerful laser for vascular lesions (leg veins, port-wine stains), onychomycosis (clear nail) and warts.

Applications / Indications
1550 (Nordlys & Nordlys Mini)

• Skin resurfacing
• Coagulation of soft tissue
• Textural irregularities, acne scars, surgical scars, striae

1940 (Nordlys & Nordlys Mini)

• Skin resurfacing (epidermal coagulation)
• Benign pigmented lesions (e.g., lentigines, solar lentigines, ephelides) for Fitzpatrick I–IV
• Actinic keratosis

Nd:YAG 1064

• Leg vessels (0.1–3 mm diameter)
• Benign vascular lesions, port wine stains, venous lakes
• Facial telangiectasias
• Clear nail (onychomycosis) and warts

SWT IPL Variants (PR 530 / PRS 530 / VL 555 / VLS 555 / PL 400 / HR 600 family)

• Photorejuvenation (diffuse redness and pigment), rosacea, telangiectasias
• Permanent hair reduction (HR 600 / HRL 600 / HRD 645)
• Inflammatory acne vulgaris (PR 530)

How it works
The system emits precise light or laser pulses absorbed selectively by target chromophores (melanin for hair, hemoglobin for vascular lesions). Absorption converts light to heat to coagulate or destroy target tissue while sparing surrounding skin.

Nordlys Applicators

• SWT IPL applicators: Light + water filtration, narrowband IPL removing wavelengths above 950 nm for safer targeted treatments.
• 1550 nm applicator: Deeper non-ablative fractional resurfacing.
• 1940 nm applicator: Epidermal fractional resurfacing and benign pigment lesion treatment.
• Nd:YAG 1064 applicator: Available with 3 tips—circular, semi-circular, and circular sapphire—to treat telangiectasia, reticular vessels, hemangiomas and difficult-to-reach vessels; software-controlled zoom spot sizes 1.5–5.0 mm.
• Integrated SoftCool technology for patient comfort and to avoid constricting underlying vessels during treatment.

Performance and Features

• Two user modes: Guided (clinical intelligence for quick learning) and Expert (advanced customization).
• Adjustable arm for screen and tray positioning; flexible applicator cables to reduce repetitive strain.
• Quiet operation for patient comfort.
• Secure Wi‑Fi–enabled remote assistance, device diagnosis and updates, and patient database for treatment history.

Available Machines

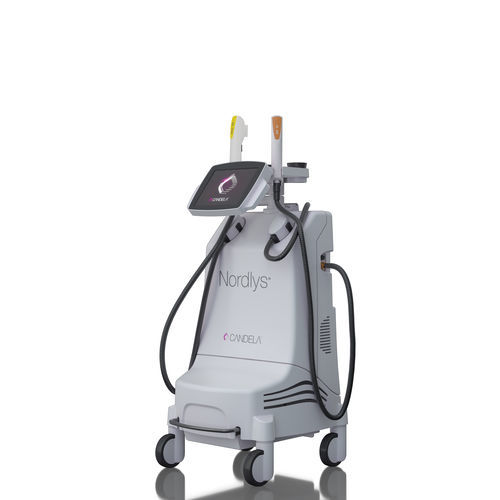

• Nordlys® — multi-application platform with SWT IPL, 1550 nm, 1940 nm, and Nd:YAG 1064 nm.
• Nordlys Mini™ — non-ablative fractional laser device with 1550 nm and 1940 nm applicators (low-to-no downtime treatments).

Regulatory / Clinical Notes

• FDA cleared, CE marked and TGA cleared for multiple indications (Nordlys 510(k) clearance referenced).
• Used in medical spas, dermatology and laser/cosmetology centers globally.

Caractéristiques / Spécifications techniques

• Technologies: SWT® IPL, 1550 nm NAFL, 1940 nm NAFL, Nd:YAG 1064 nm laser.
• Nd:YAG tip/spot sizes: software-controlled zoom 1.5–5.0 mm; multiple tip geometries (circular, semi-circular, circular sapphire).
• Applicators: SWT IPL (multiple filters), 1550 applicator, 1940 applicator, Nd:YAG 1064 applicator.
• Cooling: Integrated SoftCool for patient comfort.
• User interface: Guided mode and Expert mode; adjustable arm and accessories tray.
• Indications: Pigmented lesions, vascular lesions (telangiectasias, leg veins, port-wine stains), skin resurfacing, acne-related treatments (PDT/PR 530), hair removal (HR 600 family), onychomycosis (clear nail), benign cutaneous lesions (warts).
• Suitable skin types: Intended for use across Fitzpatrick I–VI depending on applicator and settings; Nd:YAG 1064 particularly useful for darker skin types.
• Regulatory clearances: FDA, CE, Health Canada, TGA (as noted in product literature).
• Product variants: Nordlys® (multi-application) and Nordlys Mini™ (1550 & 1940 NAFL only).
