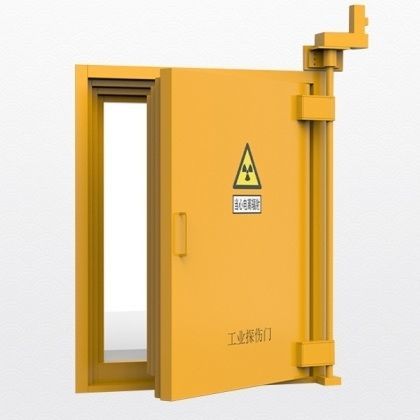

Дверь для радиологической защиты

с экранированиемдля защиты от рентгеновского излучениягерметичная

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating; the motor shall meet the IP54 dustproof and waterproof rating.
• Door integrity: the shielding materials shall be continuous and intact; the lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color options: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame requirement: the frame is supported by No.24 channel steel.

Technical Parameters
The product page includes a technical parameters illustration. Key construction and shielding parameters indicated in the description include lead thickness, boron-containing polyethylene paraffin layer thickness, steel plate thickness and motor IP54 rating.

Application Fields

• Department of Radiology: comprehensive imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to image internal structures and organs.
• Department of Radiation Oncology: localized therapeutic modality using ionizing radiation (X-rays, electron beams, proton beams, radioactive isotopes) for cancer treatment.
• Department of Nuclear Medicine: uses nuclear science technologies for diagnosis and treatment; integrates imaging, therapy, research and teaching.

Key words / Category
Category: Lead protection door
Key words: Industrial flaw detection door

caractéristiques / spécifications techniques

• Shielding process: 30 mm lead (Pb) + 120 mm boron-containing polyethylene paraffin.
• Door panel thickness: 1.0 mm.
• Door body material: 10 mm Q235 steel plate.
• Surface treatment: sandblasting and fluorocarbon coating (anti-fingerprint mirror finish option available).
• Motor: brand-name motor, IP54 dustproof and waterproof rating; equipped with high-load-bearing rails and cover plates.
• Protection belt: special anti-fingerprint mirror finish belt designed for radiation protection.
• Color / finish options: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame support: No.24 channel steel.
• Design considerations: primary shielding in direction of useful beam; other directions designed for leakage and scattered radiation shielding.
