Датчик температура тела CORE Calera

для измерения температурыкалибровкиподвижный

Overview
Calera® is CORE’s premium core body temperature monitoring solution for research use cases. The innovative sensor technology is built into a compact waterproof device that can be comfortably worn during controlled study settings, sports activities, at work, or all day long. CORE Calera® comes with functionalities and services specifically designed for research purposes, including access to high resolution data and several benefits often appreciated by researchers.

Advantages

• Raw Data Access
  • More data stream; e.g. core temp / skin temp / accelerometer / Heart rate (external device) / Heat flux*
  • Highest resolution: 1 measurement per second
  • For the most precise data during sports activity, pairing with a heart rate monitor is recommended to help convert measured heat flux into core body temperature. During everyday (non-sports) activity, core temperature data is accurate with or without a heart rate monitor.
• Remote Support
  • Assistance in setting up studies
  • Data interpretation support
• Highest Accuracy
  • Each CORE Calera® device undergoes individual calibration for heat flux and skin measurements to ensure optimal accuracy across devices.
• Store Data on Calera
  • Up to 6.5 days of on-device storage
  • No data loss due to poor connection
• Research Tool
  • Control multiple devices simultaneously from PC/MAC
  • Download data in accessible .csv files

*Heat flux is available on agreement.

Technical Specifications

• Dimensions (diameter × thickness × height): 50 mm × 40 mm × 8.35 mm
• Mass including battery: 17 grams
• Power supply: Rechargeable lithium‑polymer battery (via USB)
• Battery life: 6.5 days of measuring (up to 6 weeks in sleep mode)
• Data storage capacity: up to 6.5 days
• Sampling rate: 1 Hz
• Research-backed accuracy: mean difference range of -0.01 °C to +0.23 °C
• Calibration: Individual calibration at CORE HQ
• Time to full charge: ~2 hours
• Waterproof: immersion to 1.5 m and sweat proof
• Medical use: not medCE or FDA certified; must not be used for medical or diagnostic purposes
• Connectivity: Bluetooth BLE & ANT+
• App support: iOS, Android

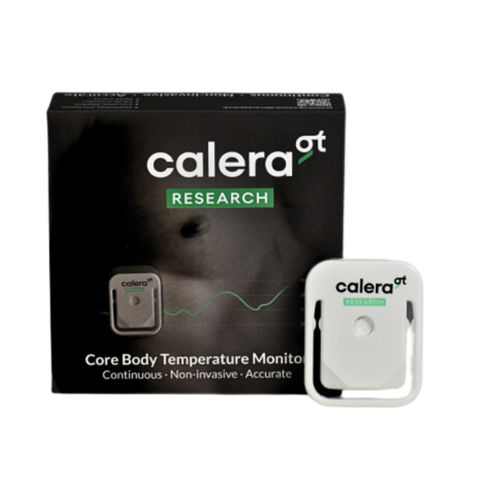

What’s In The Box

• CORE Calera® sensor
• Securing clips
• USB charging cable
• Adhesive patches
• Bluetooth dongle to connect to desktop PCs
• Calera quick start guide, warranty and manual
• CORE Calera® app
• Research tool for Mac/Windows

Warranty Information
CORE Calera® has a warranty of one year under Swiss law.

The Technology
Calera® is a wearable device that enables accurate, non-invasive, and continuous core body temperature monitoring. The technology combines heat-flux and skin temperature sensors with machine learning algorithms trained on over one million data points to calculate core body temperature. Heat‑flux measurement is based on a Seebeck-type sensor that generates a voltage proportional to heat passing through the sensor, enabling robust estimation of thermal energy transfer independent of physical activity and environmental conditions.

Caractéristiques / spécifications techniques

• Modèle: Calera®
• Dimensions: 50 mm × 40 mm × 8.35 mm
• Poids: 17 g (incl. batterie)
• Alimentation: batterie rechargeable lithium‑polymer via USB
• Autonomie: 6.5 jours de mesure (jusqu'à 6 semaines en mode veille)
• Taux d'échantillonnage: 1 Hz
• Stockage: jusqu'à 6.5 jours
• Précision: moyenne entre -0.01 °C et +0.23 °C
• Étanchéité: immersion jusqu'à 1.5 m
• Connectivité: Bluetooth BLE et ANT+
• Compatibilité application: iOS et Android
